LuOcean Laser Modules

The Lumics’ LuOcean product series offers highly reliable NIR-diode laser modules with:

  • wavelengths from 670 nm up to 1940 nm as well as mixed wavelengths
    up to 4 wavelengths coupled into one fiber, all individually controllable
  • fiber coupling in 105 µm – 1000 µm
  • beam parameter product 10 mm x mrad – 60 mm x mrad
  • industrial casing
  • air cooling up to 100 W optical output power
  • various options
  • matching OEM laser driver also available

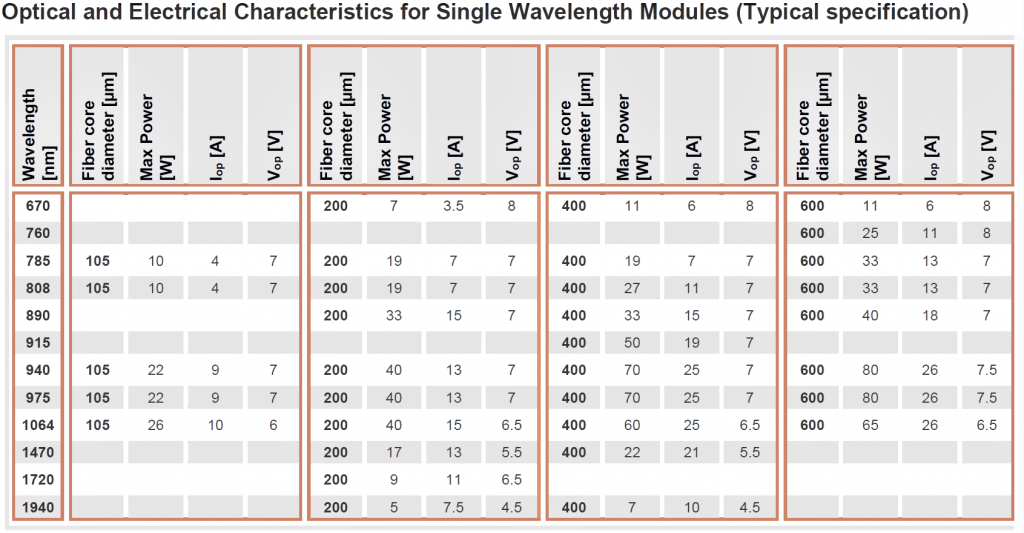

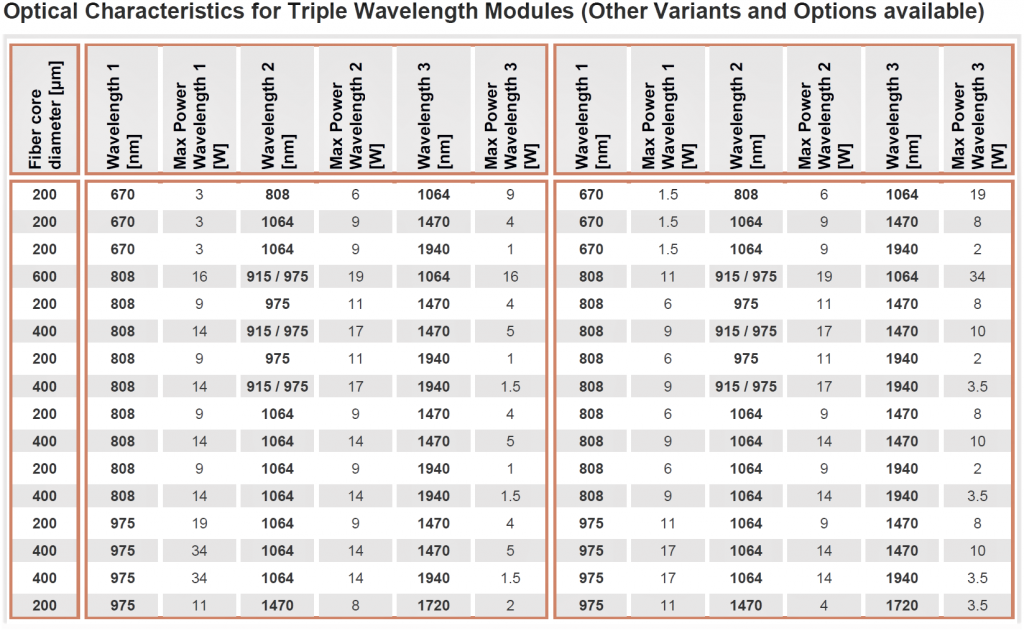

LuOcean Mini4

Product Code
( Datasheet)
Wavelength* (nm) Max.  power  (W) Output fiber core diameter (µm) Output fiber NA
LUxxxxDyyy-U

LU0785Dyyy-U
LU0808Dyyy-U
LU09xxDyyy-U
LU1064Dyyy-U
LU1470Dyyy-U
LU1940Dyyy-U

670-1940

785
808
940/975
1064
1470
1940

up to 70

up to 25
up to 33
up to 70
up to 65
up to 22
up to 7

200/400/600

600
200/400/600
200/400/600
200/400/600
200/400
200/400

0.22

All given power levels indicate max. power with largest fiber at this wavelength in this package type. Different or lower power levels always possible. Please discuss with us your specific needs.

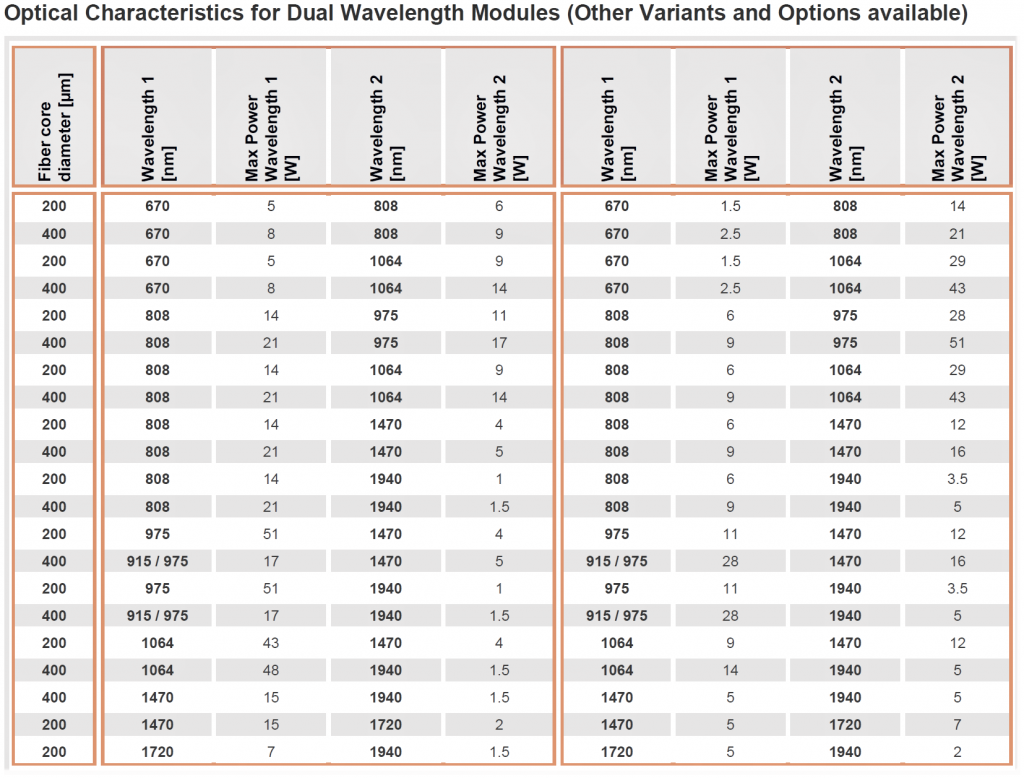

  • Mixed wavelength modules available. Any wavelength combination possible.
  • For available integrated options – see below.
  • Further wavelengths available on request.

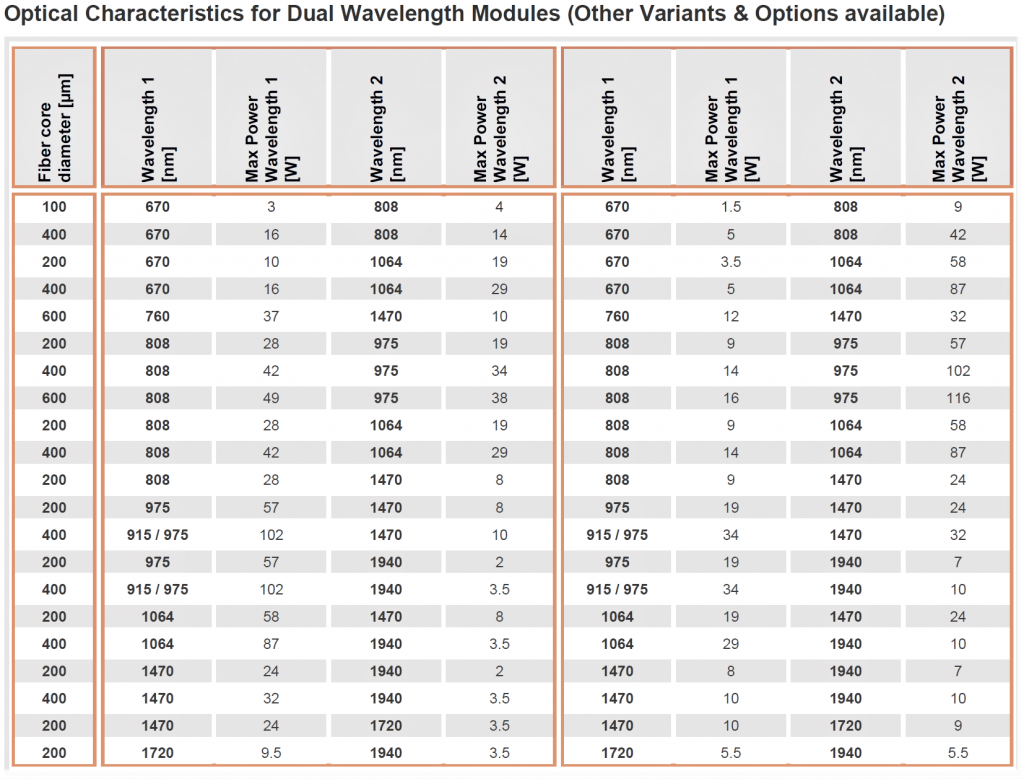

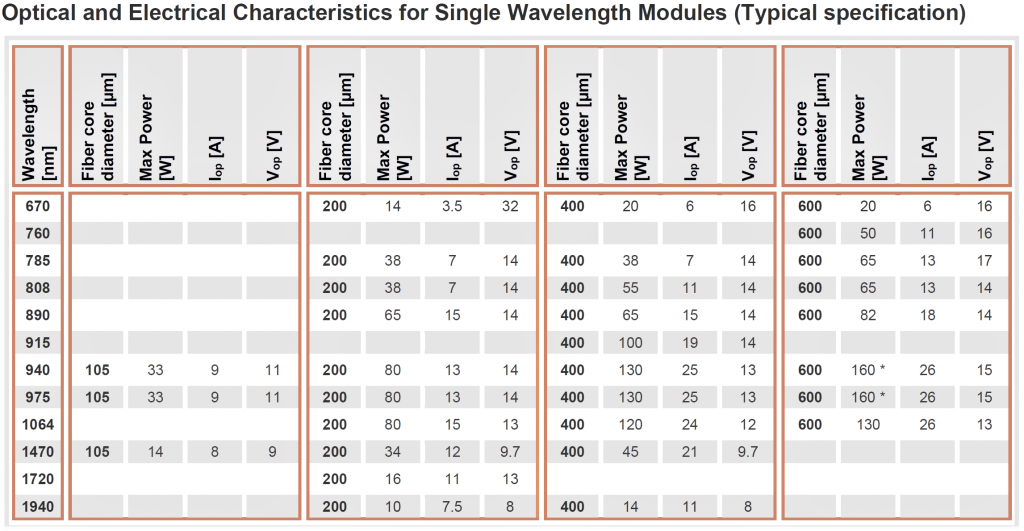

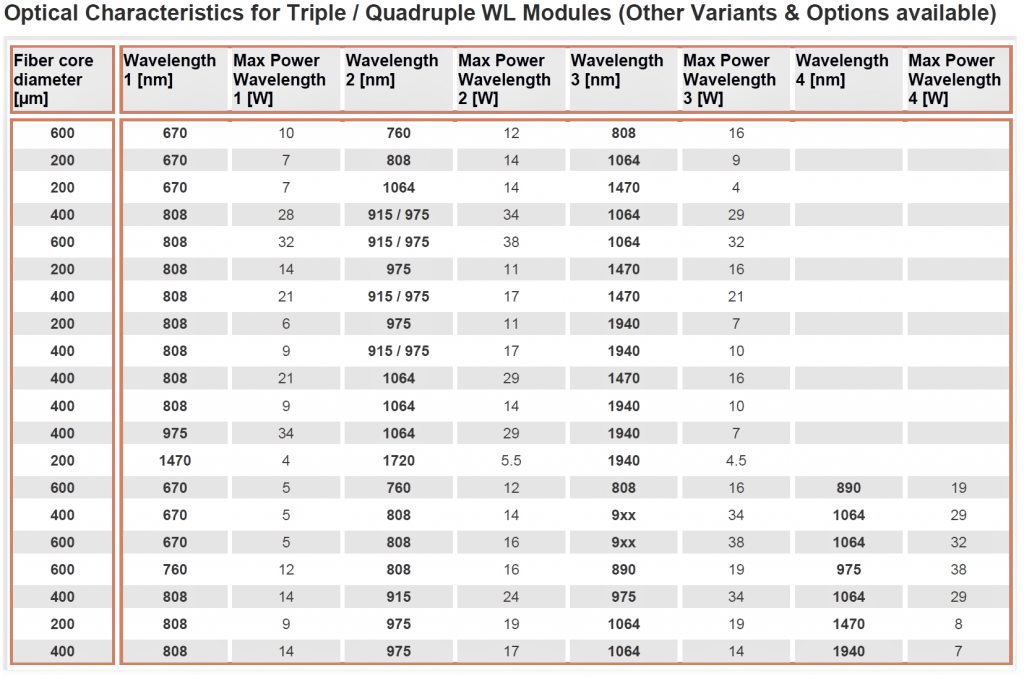

LuOcean Mini8

Product Code
( Datasheet)
Wavelength* nm Max. power W Output fiber core diameter (µm) Output fiber NA
LUxxxxDyyy

LU1940D140

670-1940

1940

up to 130

up to 14

200/400/600

200/400

0.22

0.22



All given power levels indicate max. power with largest fiber at this wavelength in this package type. Different or lower power levels always possible. Please discuss with us your specific needs.

  • Mixed wavelength modules available. Any wavelength combination possible.
  • For available integrated options – see below.
  • Further wavelengths available on request.

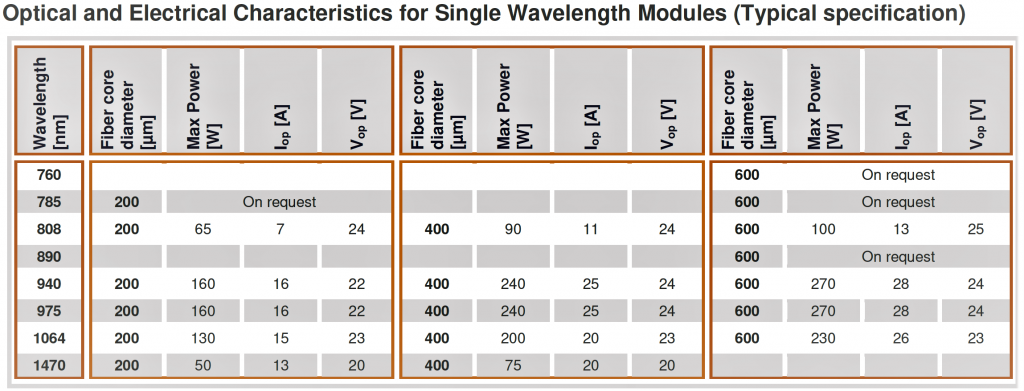

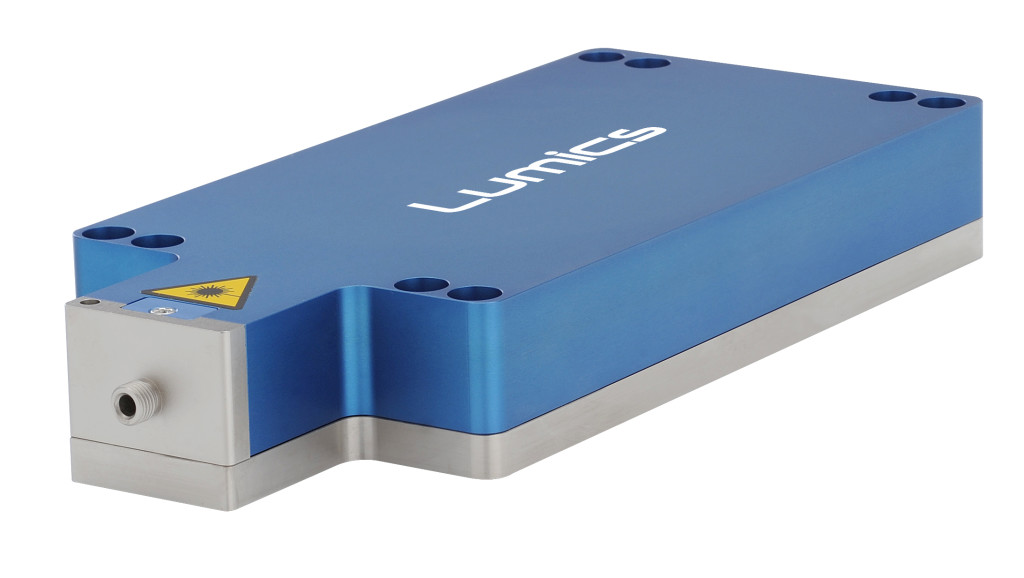

LuOcean P2
LuOcean_P2_web



Product Code
( Datasheet)
Wavelength* nm Max. power W Output fiber core diameter (µm) Output fiber NA
LUxxxCyyy

LU0785Cyyy
LU0808Cyyy
LU0808C230
LU0890C110
LU09xxCyyy
LU1064Cyyy
LU1470Cyyy
LU1470Cyyy
LU0808_1470Cyyy
LU09xx_1470Cyyy

670-1470

785
808
808
890
940/976
1064
1470
1470
mixed wave
mixed wave

up to 270

up to 110

up to 230
up to 110
up to 270
up to 230
up to 50
up to 75
diff
diff

200-1000

200/400/600
200/400/600
1000
200
200/400/600
200/400/600
200
400
200 or 400
200 or 400

0.22

All given power levels indicate max. power with largest fiber at this wavelength in this package type. Different or lower power levels always possible. Please discuss with us your specific needs.

  • Mixed wavelength modules available. Any wavelength combination possible.
  • For available integrated options – see below.
  • Further wavelengths available on request.

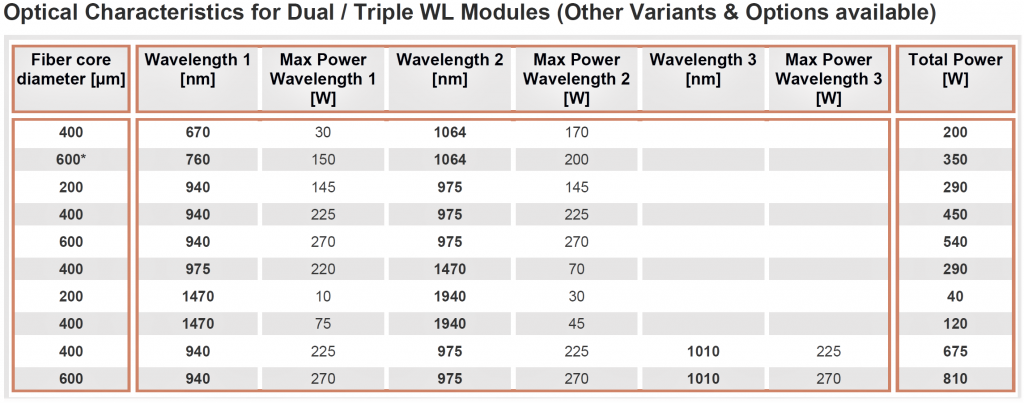

LuOcean M4

Product Code
( Datasheet)
Wavelength* nm Max power W Output fiber core diameter (µm) Output fiber NA
LUxxxxAyyy 670 nm – 1940 nm
up to 830W

200/400/600/1000

 0.22

All given power levels indicate max. power with largest fiber at this wavelength in this package type. Different or lower power levels always possible. Please discuss with us your specific needs.

  • Mixed wavelength modules available. Any wavelength combination possible.
  • For available integrated options – see below.
  • Further wavelengths available on request.

Options:

* If you do not find your required wavelength or power level, please contact us at sales@lumics.com; we manufacture specific wavelengths on an individual wafer basis.
OPT 1: LuOcean Driver Kit with Digital Interface

OPT 2: Internal temperature sensor NTC  (Standard), optional LM35 PT100/PT1000, power monitor, fiber detector (safety feature)
OPT 3: Air-cooled TEC Chiller Plates or water cooled base plates available
OPT 4: Red pilot beam 650nm, adjustable (1-3mW) output power (laser class 2)

OPT 5: Green pilot beam 520, adjustable (1mW) output power (laser class 2)

Note 1: All our broad area single Emitters have either a +/-10nm or +/-20nm wavelength tolerance; we can select tighter specifications on request.
Note 2: All packages have a fiber connector (SMA or D80) for an easy exchange of the output fiber. Customers can use their own patch cords. If you request free beam lasers, please contact us at sales@lumics.com.

LUMICS’ DIODE LASER TECHNOLOGY

The Lumics’ LuOcean product series offers highly reliable fiber coupled diode laser modules with high power up to 830 W at different wavelengths ranging from 670 nm across 9xx nm and 980 nm to 1470 nm & 1940 nm.
Lumics’ LuOcean laser modules are available with different brightness, coupled into fibers from 100 µm up to 1000 µm diameter corresponding to a beam parameter product of around 10 mm x mrad to 60 mm x mrad, respectively.

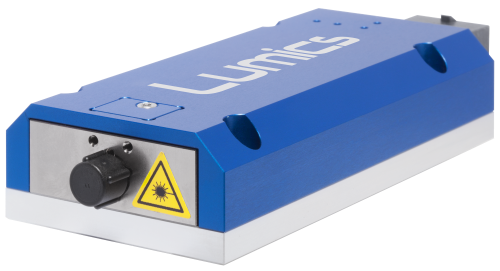

Our customers enjoy the compact design of Lumics’ LuOcean laser modules with detachable fiber and a single electrical connector allowing the laser module to be easily fitted and designed in. The rugged and well-sealed industrial casing is ideal for applications in material processing, medical & health, laser pumping, security & defense, and analytics & sensing. Due to our patented single-chip design, Lumics’ LuOcean diode lasers operate at low current with industry standard life-times up to 3 years and are extremely energy efficient for all these applications.
The Lumics’ LuOcean laser modules can optionally be equipped with various mixed wavelengths, additional monitor photodiodes, red or green aiming beam pilot laser, fiber sensor, “easy access” exchangeable exit window, and different temperature sensors. Hence, every Lumics’ LuOcean laser module can be individually tailored to the customer’s needs.
We also offer Lumics’ LuOcean laser modules in addition with a power supply and laser diode driver and thus provide a “plug & play” laser system not only as OEM but also for stand-alone use.
