Singlemode Diode Lasers

Your Perfect Solution for a Broad Range of Applications in
Sensing, Communication, Seeding and Pumping –

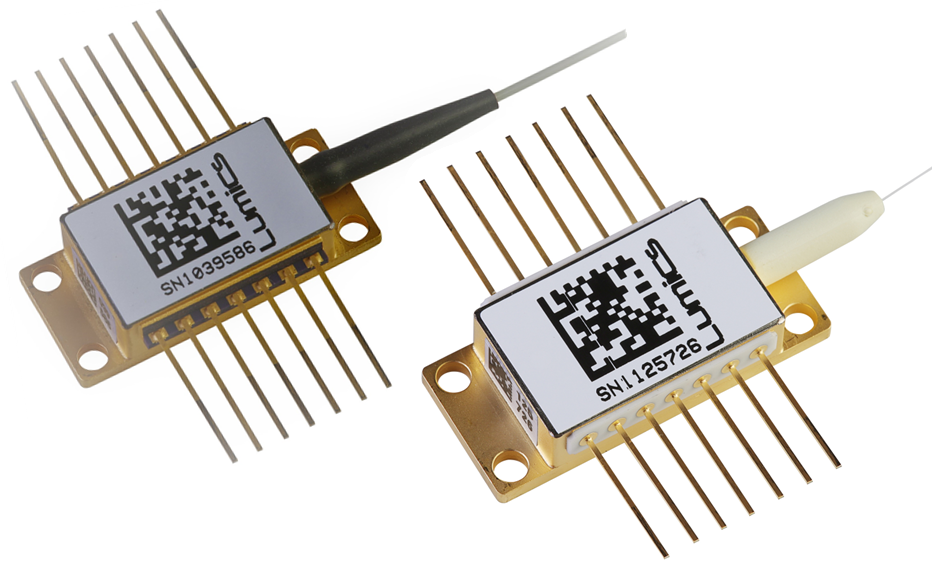

Lumics’ High-Power Singlemode 14pin Butterfly Diode Lasers

Lumics’ singlemode diode laser modules are designed for demanding markets where high power density and speed, high brightness and ultra-long lifetime are key. Explore how Lumics’ 14pin Butterfly products can elevate your projects with advanced technology and reliable performance, and learn why they are the top choice for professionals in the field.

Why Lumics’ Singlemode BTF14 Diode Lasers Stand Out

  • Versatile module options: A range of wavelengths and options to meet precisely your specific requirements.
  • Market-leading chip reliability exceeding by far the industry defined level of 10,000 hours.
  • Proven environmental test according Telcordia GR-468-CORE and MIL-STD-833E
  • Option for short ns pulsing plus wavelength stabilization simultaneously (also for PM fibers).

Why Choose Lumics as Your Partner?

  • Vertically integrated supplier: Cutting-edge technology developed and produced in-house.
  • In-house chip development and manufacturing including unique patented chip facet passivation.
  • Stable product offerings: No unexpected changes that could impact your qualifications + certifications.
  • Profound application expertise: Specialized knowledge to support your application.

14pin BTF

SM fiber

PM fiber

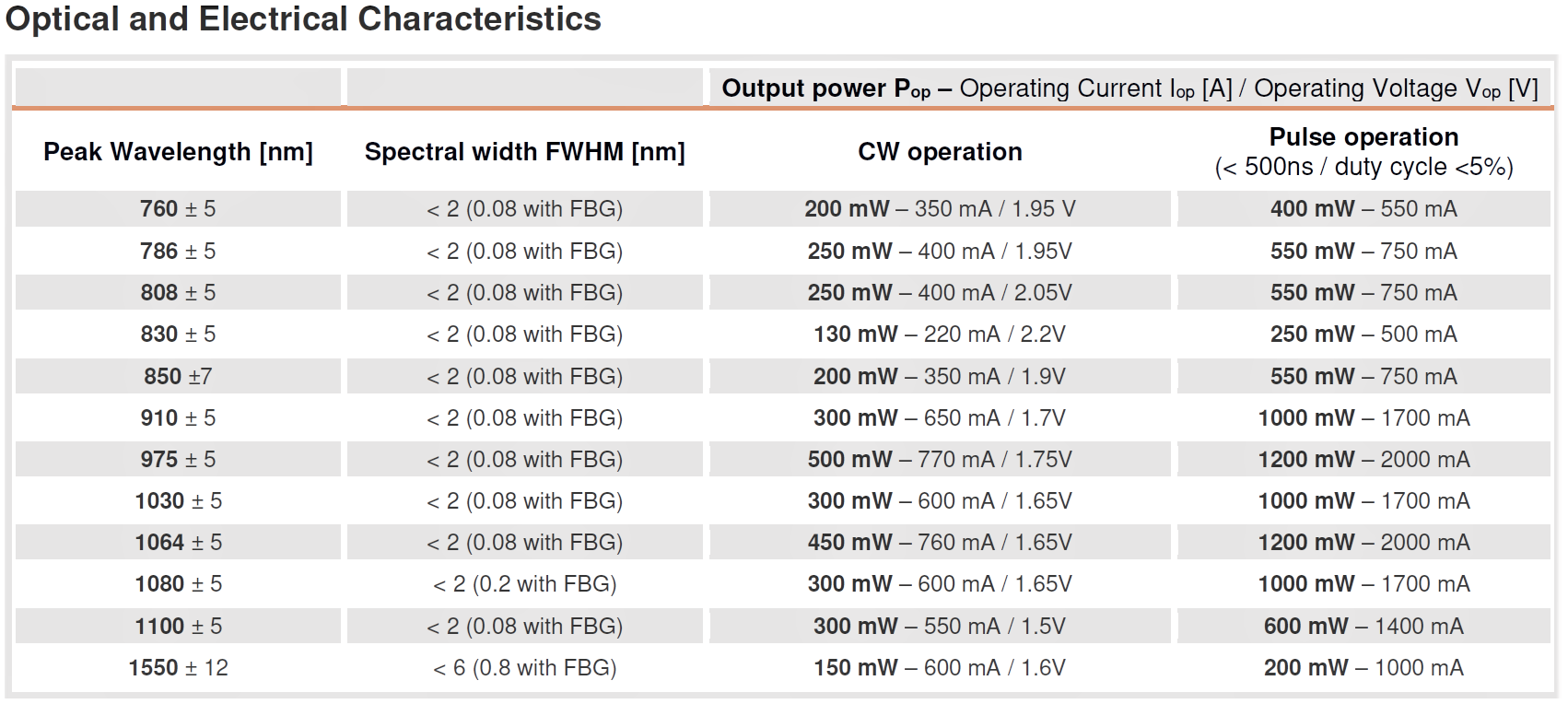

Click here for available wavelengths + power levels:

Click here for technical features + performance:

Features & Functions

  • 760 / 786 / 808 / 830 / 850 / 910 / 975 / 1030 / 1064 / 1080 / 1100 / 1550 nm
  • Power up to 500mW cw / 1200mW pulsed dependent on chosen wavelength
  • Singlemode pigtail with APC ferrule
  • Monitor PD + thermistor
  • Telcordia compliant package
  • Hermetic sealing, no expoxy

Options & Accessories

  • Polarization maintaining (PM) fiber
  • Wavelength stabilization with FBG
  • Close-to-chip FBG for short ns pulsing down to 150ps
  • Low induction low rise <1ns package
  • Connectorized pigtail incl. 900µm protection tube

Your preferred wavelength or power is not listed?
Given the large variety of possible configurations, only a representative selection is listed here.
Please contact our technical experts who will custom-configure your project-specific solution.
