LUOCEAN OEM DRIVER + COOLING

Your Perfect Solution to Complement Your LuOcean
Diode Laser Module –

Lumics’ Proprietary OEM Driver Kit and Chiller Unit

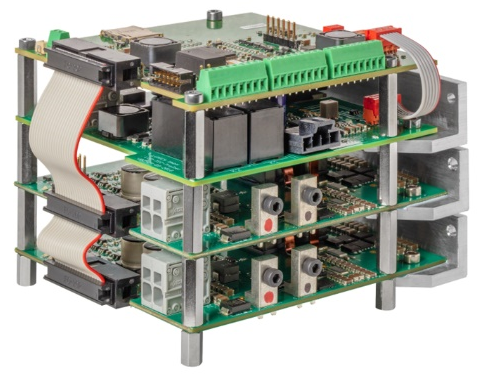

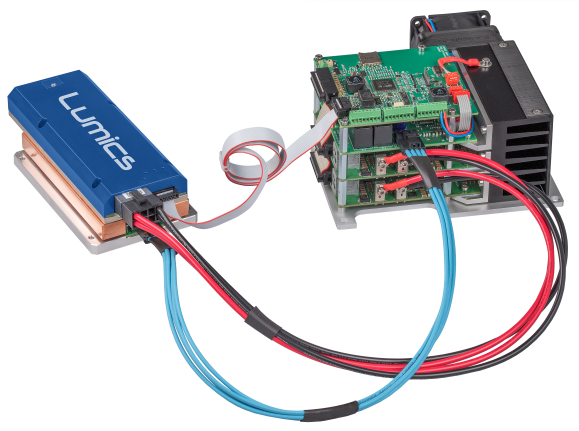

The LuOcean Driver Kit caters to the needs of OEM manufacturers seeking swift commissioning of laser modules for testing and development. It offers a digital interface to connect with LuOcean diode lasers. The Driver Kit comprises a controller that reads laser module signals and controls pilot laser parameters. It also includes laser drivers for activating the laser module.

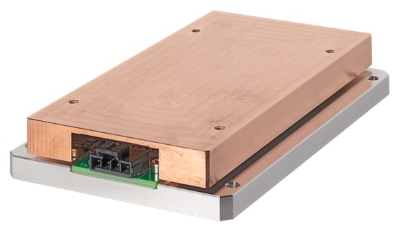

The LuOcean Chiller Unit is a TEC based cooling plate available for the LuOcean modules Mini4 and Mini8. It allows to keep the laser diodes inside the laser module within a specified temperature.

The LuOcean Driver Kit provides the option to add a TEC chiller driver.

Simplifying development and manufacturing is a priority, achieved through the inclusion of a standard RS232 programming interface and built-in protection functions. These features streamline operations and enhance equipment safety.

Why LuOcean OEM Drivers + Cooling Plates Stand Out

  • Proprietary design specifically optimized for operation of Lumics’ LuOcean diode laser modules – no need for laborious adaptations.
  • Freely configurable and stackable with up to 6 laser driver boards and 2 TEC drivers
  • Full digital access and control to all functions of laser module. Full laser diode protection.

Why Choose Lumics as Your Partner?

  • Vertically integrated supplier: Cutting-edge technology developed and produced in-house.
  • Stable product offerings: No unexpected changes that could impact your qualifications + certifications.
  • Profound application expertise: Specialized knowledge to support your application.

LuOcean Driver Kit

Click here for detailed specifications:

Features & Functions

  • Full digital control using RS232 interface
  • Current range 0.3 to 28 A
  • Pilot on/off & intensity control
  • Pulse mode (Minimum pulse width 100 μs)
  • Duty cycle range 1% to 99%
  • Temperature control accuracy ±2°C
  • Laser shut down after error / interlock
  • External analog synchronization
  • Shut down in case of overheating

Options & Accessories

  • Chiller driver board
  • LuOcean Chiller Unit for Mini4 and Mini8
  • Starter-set with
    fan & heat sink

Features & Functions

  • TEC cooling for LuOcean
    Mini4 + Mini8
  • Full digital control
  • Temperature control accuracy +-2°C
  • Adapts to customer air cooled heat sink
  • Shut down in case of overheating

Options & Accessories

  • Chiller driver board
  • Starter-set with
    fan & heat sink

Given the large variety of possible configurations of the LuOcean laser modules,
we will be happy to identify the best technical parameters for your driver and cooling products.
Please contact our technical experts who will custom-configure your project-specific solution.
