Multimode Diode Laser

New Improved TO220 Package

State-of-theArt Benefits for Demanding Applications:

  • Quasi Telcordia Qualified Package
  • Improved Hermetically Sealed
  • Dry Air to avoid Package Induced Failure (PIF) through Hydrocarbons
  • Moisture Getter to allow Operation down to (-)10°C
  • Two Flange for Easy Mounting and Best Reliable Thermal Contact

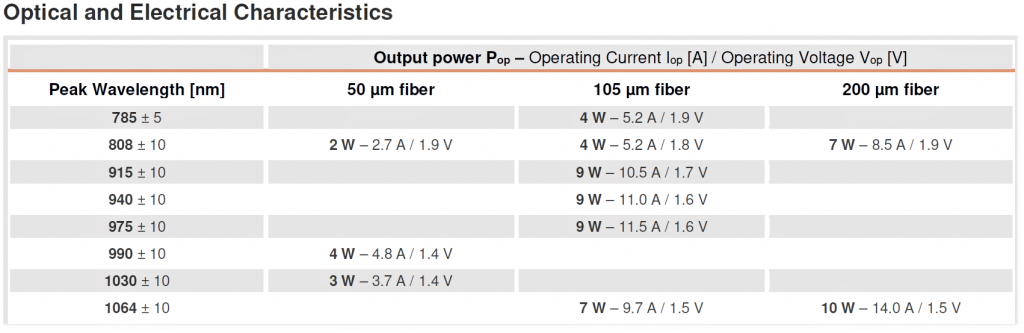

Single Emitter Product Code
( Datasheet)
Wavelength*
nm
Power
W
Comments
µm / NA
comments
TO-packagesTO-220 v13 LU0785T040
LU0790T040
LU0808T020
LU0808T020
LU0808T040
LU0808T070
LU09xxT090
LU0990T037
LU1030T030
LU1064T070
LU1064T100
LU1470T015
785
790
808
808
808
808
915 / 940 / 975
990
1030
1064
1064
1470
4
4
2
2
4
7
9
3.7
3
7
10
1.5
105 / 0.15
105 / 0.15
50 / 0.12
50 / 0.22
105 / 0.15
200 / 0.22
105 / 0.15
50 / 0.22
50 / 0.22
105 / 0.15
200 / 0.22
105 / 0.15
uncooled
Single Emitter Product Code
( Datasheet)
Wavelength*
nm
Power
W
Comments
emitter widths (µm)
Peak power
pulsed W
Flat_mount 6 LU0808Fyyy
LU0808F110
LU0850F080
LU09xxFyyy
LU1010F150
LU1064Fyyy
808
808
850
915 / 940 / 975
1010
1064
4.7 or 8
11
8
10/14/21
15
9 or 12
95 or 190
365
190
95/190/365
190
95 or 190
6 or 10
18
15
15 / 23 / 28
23
12 or 16
Single Emitter Product Code
( Datasheet)
Wavelength*
nm
Power
W
Comments
emitter widths (µm)
Peak power
pulsed W
COC_13COC 13 LU0785/0808I047
LU0785/0808I080
LU0890I140
LU09xxI100
785 / 808
785 / 808
890
915 / 940 / 976
4.7
8
14
10
94
190
190
94
7
12
20
15
Single Emitter Product Code
( Datasheet)
Wavelength*
nm
Power
W
Comments
emitter widths (µm)
Peak power
pulsed W
Flat Package for PCBLumics Flat Package LU0808P030C
LU0808P100C
808
808
3
10
45
365
n. a.
20
Multi Emitter Product Code
( Datasheet)
Wavelength*
nm
Power
W
Comments
emitter widths (µm)
Peak power
pulsed W
Flat_mount 6 LU0808F150_210
LU09xxF240
LU1064F200
808
915 / 940 / 975
1064
15 / 21
24
20
2×190 / 6×90
2×190
2×190
25 / n.a.
36
25

Notes:

* If you do not find your required wavelength, please contact us; we manufacture specific wavelengths on an individual wafer-basis.
Note 1: All our broad area single emitters do have a +/-10nm wavelengths tolerance at the respective typical operating conditions;we can select tighter specifications on request.
