Products
Product Line
| Power Range (W) Wavelength Range (nm) |
Sensor Types Pilot Beam |
Fiber / Connector Emitter Type |
Product |
|---|---|---|---|
| Up to 70 W 670nm – 1940nm available with up to four wavelengths |
Power Temperature Fiber Red / Green |
Detachable / SMA Multi mode |
 |
| Up to 130 W 670nm – 1940nm available up to four wavelength |
Power Temperature Fiber Red / Green |
Detachable / SMA Multi mode |
 |
| Up to 270 W 670nm – 1470nm available with single or dual wavelength |
Power Temperature Fiber Red / Green |
Detachable / SMA Multi mode D-Sub 13W3 |
 |
| Up to 830 W 670nm – 1940nm available up to three wavelength |
Power Temperature Fiber Red / Green |
Detachable / SMA or D80 Multi mode |
 |
| Up to 12 W 785nm – 1064nm Single wavelength |
Fixed / APC ferrule Multi mode 2-pin solder or clamp |
TO220 |
|
| Up to 1.2 W 670nm – 1940nm single wavelength |
Free Beam Multi mode |
Flat Package |
|
| Up to 0.5 W 760nm – 1550nm Single wavelength |
Power Temperature |
Fixed / APC ferrule Single mode 14-pin solder or clamp |

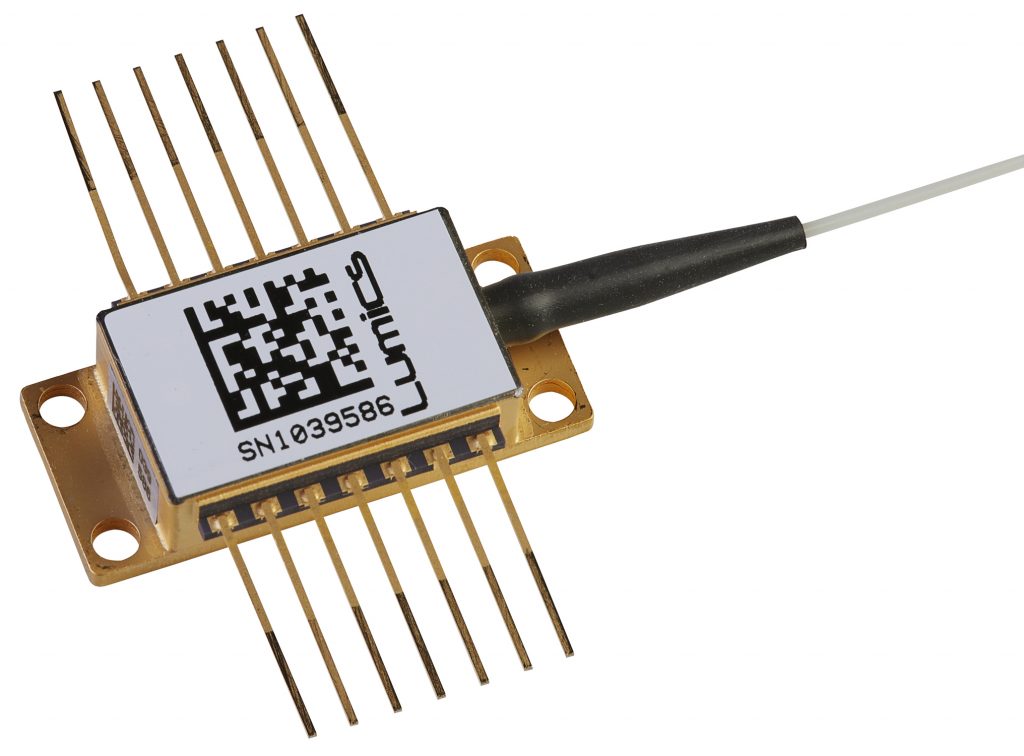

BTF14 |

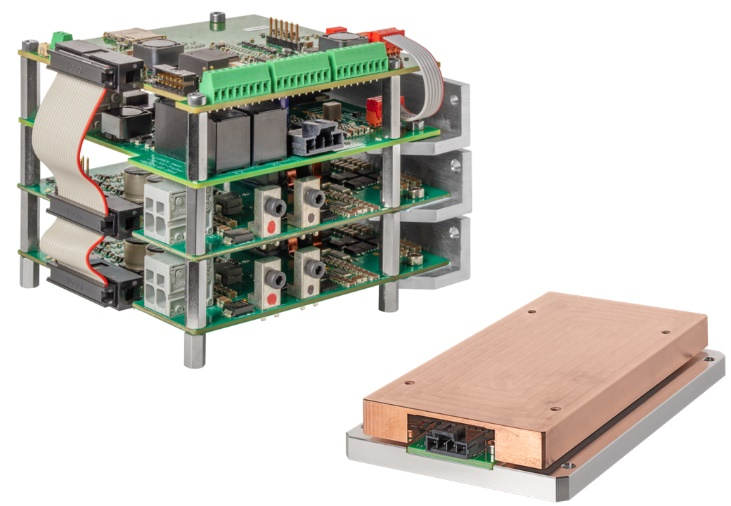

Suitable laser drivers and cooling options available.
